Copper Coil vs Aluminium Coil in AC : Which One is better?

One of the confusion that bothers us is the copper coil vs aluminium coil when we are shopping around for an air conditioner or a refrigerator. Many people do not know the difference and which one to choose. So in this article, we will give you a broad overview of copper coil vs aluminium coil and after that, you can easily decide which one is the best for you

We consider so many things like the tonnage of an AC, power consumption, number of features, aesthetics while buying an air conditioner. But we mostly ignore one of the most important aspects of an air conditioner and that is the condenser coil.

There are basically two types of condenser coils available in the market. One is an aluminum coil and the other is a copper coil. Both have their own advantages and disadvantages and we are going to discuss those in this article.

But before that, lets explore the importance of condenser coil in refrigeration cycle.

Importance of Coil: Aluminium Condenser vs copper Condenser

Refrigerant is the basic element of an air conditioner or a refrigerator. It flows through different parts of a refrigeration cycle and during the whole process changes the state from gas to liquid, changes the temperature and pressure. While the refrigerant flows through the system, it absorbs heat from the room and dissipates it into the atmosphere. The whole process of the refrigeration cycle is called HVAC ( Heating ventilation and air conditioning)

There are three major process involved in a typical refrigeration cycle as shown below.

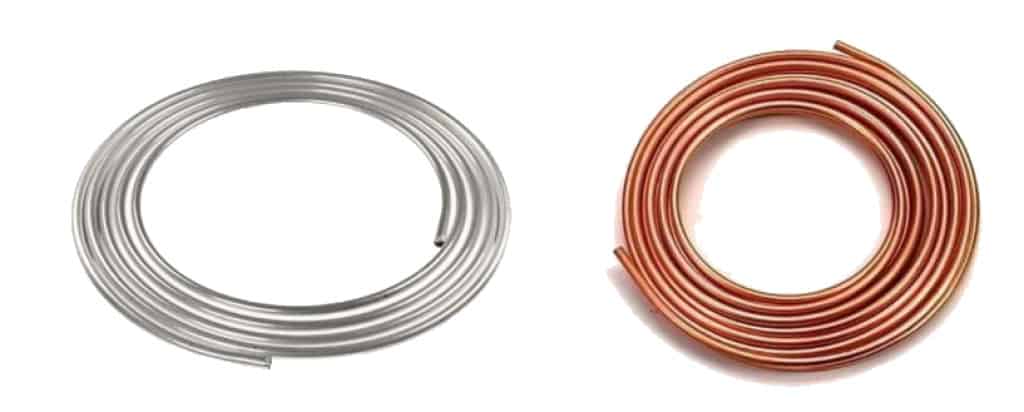

Copper Coil vs Aluminium Coil in AC

1) Compression: The hot and low-pressure refrigerant gas from the evaporator is converted into high pressure and high-temperature liquid in the compressor. The compressor can use a fixed speed motor or a variable speed motor to elevate the pressure and temperature

2) Condensation: High pressure hot liquid refrigerants from the compressor are passed through the condensation process and while passing through condensation coils, it dissipates heat into the surrounding atmosphere. Often a fan is used for forced condensation. The coils are typically made of either copper or aluminum

3) Expansion: A set of expansion valve reduces the pressure in the refrigerant liquid before it goes to the evaporation

4) Evaporation: During evaporation process, the low pressure low temperature refrigerant liquid absorbs the heat from the room and convert itself into a low pressure gas.

The cycle then continues like that.

So you may notice that the condenser coil plays the important role of dissipating heat to the atmosphere. If the condenser does not dissipate heat, the refrigeration cycle won’t work at all.

This principle works in all types of machines based on HVAC systems, only the system sizes change. Therefore, the different types of coils used in them affect the efficiency of the HVAC system. The size of the coils, the materials used to make them, the ease of cleaning and maintenance; All play a very big role in the functioning of HVAC systems.

You are reading : Copper Coil vs Aluminium Coil in AC

Historical Information about AC Condenser: Copper Coil vs Aluminum Coil

In the past, the most popular option for making the condenser coil was copper. For many years various coils of the HVAC system were made only from copper, copper was a natural choice due to its various benefits. However, due to this, the cost of designing the air conditioner used to be expensive and not everyone could buy it.

Around 1970, a company called General Electronics took a step which proved to be a ‘game-changer’ for the air conditioning industry. They started using aluminum to make coils. The cost of using aluminum was much lower than that of copper, which significantly reduced the total cost of luxury equipment such as air conditioners and brought consumers into the affordability range. Since then a new debate has arisen as to which material or metal is better for making coils.

You are reading : Copper Coil vs Aluminium Coil in AC

Difference between Copper and Aluminium AC

We will figure out the differences between copper coil vs aluminum coil based on some key parameters as explained below.

Copper Coil vs Aluminium Coil

Heat Transfer Characteristics

Without a second thought, copper is the best metal for heat transfer due to its high conductive property. A condenser coil made from copper can dissipate heat more efficiently and quickly. So your AC or refrigerator will cool your room better and will also save more energy.

If you care about cooling efficiency, then you should buy an air conditioner with a copper condenser coil only. Aluminum coils just can not match the cooling efficiency of a copper coil

Flexibility (Quality to be easily bent)

If you notice carefully, condenser coils are bend in ” U” shapes and there are multiple turns of tubes in a single condenser coil. There is a reason for this shape. Due to this shape and multiple turns, refrigerant can travel more distance and more time to dissipate heat.

To create such bends, we need materials to be more ductile. What that means is that if you bend the metal it should not break up to a certain extent. The ductility of copper is better than aluminum. You can easily bend a copper tube with bare hands without breaking it, But for aluminium, there is always a chance of breaking.

But the only concern for the copper tube is the weight. The density of copper is more than aluminum. So for the same design, a copper coil will be heavier than the aluminum coil. Since copper is heavier, it will cost you more too.

Strength and reliability

Copper is much easier to repair than aluminum. Many times, aluminum coils ask for changes if they are damaged. Copper coils are stronger than aluminum, so they are also durable. Thin copper coils are in use these days, which reduces some of its high cost. However, they have their own problems that new refrigerants replacing old HCFCs are susceptible to leakage (diluted copper coils) when they work under high pressure. This makes copper less durable, demands higher maintenance, and also reduces the life of the coil.

Ease of Maintenance and repair

Condenser coils are exposed to the environment unlike other parts of refrigeration systems that are assembled under a sealed system.

Since condenser coils are exposed, you can expect more damages too. If your aluminum coil is damaged, often you need to replace the complete coil. That would cost a good amount of money.

However in the case of copper, many joining methods like soldering or brazing work to fix the leakage without really replacing the whole coil. That drastically reduces the repair cost.

Corrosion

Corrosion plays a very important role in determining the life of an air conditioner. Rusts damage the coil, disrupting the heat transfer process and resulting in leakage. Therefore, it is very important that we protect the condenser coil from rust damage.

Corrosion is a formidable problem for people living in humid climates and on the seaside, because such areas have high moisture content.

Rust in copper is in the form of ‘Formicidae rust‘, but we can control this type of rust to a great extent by regularly cleaning the coil and maintaining caution.

The major problem comes with aluminum coils. Their joints may have galvanic rust. Galvanic corrosion occurs when aluminum coils are joined to a copper tube. Galvanic corrosion occurs when two different metals, such as copper and aluminum, are exposed to moisture in the presence of an electrolyte.

Due to this rust, a non-conducting layer is formed over the coil, which reduces the heat and exchange capacity of the Aluminium Condenser.

Due to the expansion of many modern technologies nowadays, there has been a surge in the corrosion-resistant technology in the market, which protects the Aluminium Condenser and Copper Condenser against rust and thus also helps to extend the life of AC.

You are reading : Copper Coil vs Aluminium Coil in AC

Summary Of Copper Coil Vs Aluminium Coil

CharacteristicsCopper CoilAluminium
Cooling efficiencyBetterLess than copper
Design flexibilityGoodPoor, due to less ductility
Weight of condenserMore than aluminiumAluminium coil weights less than copper coils
DurabilityMore tough and durableNot so durable
RealiabilityMore reliable Less reliable
MaintananceEasy to maintainTough to maintain
RepairsEasy repairsNeed to replace the whole coil
CostVery HighLow
While buying an AC or a refrigerator, please look for any anti-corrosion coating on the condenser coil. Appliances with corrosion-resistant coating may cost you more but in the long run, you may be saved from huge repair bills.

You are reading : Copper Coil vs Aluminium Coil in AC

New Technologies Used In Condenser Coils

Each type of metal has its advantages and disadvantages, that play an important role in being an appropriate choice for making condenser coils. And when we look for an answer to which type of coil is the best, then we should also test some modern technology that can give better performance.

Blue Fin Condensers

Blue Fin Condenser or Blue coated condenser has a special anti-corrosive coating to protect condensers from the accumulation of salt, acid, and water droplets.

blefin condensers

Most of the reputed brands like Voltas, Panasonic, Electrolux uses this technology in their premium product ranges. This type of coating is useful if you live in coastal areas like Mumbai, Chennai, or Kolkata where the moisture content in the air is more.

Micro Channel

Most of the aluminum coils are micro-channel condenser coils nowadays. Many are a group of flat tubes and are made of aluminum. They contain small channels (microchannels) through which refrigerants flow. In this setup, flat tubes, aluminum fins are located between the two refrigerant manifolds. Because there is no joint of two different metals in this setup, they are free from galvanic corrosion.

microchannel

Due to these technology, not only people in coastal areas get a suitable option, but it also increases the thermal performance of the Aluminium Condenser by increasing the surface area. Samsung makes full use of this technology in many of its models.

Extra Heat Exchanger

Many air conditioners are coming with an extra heat exchanger nowadays. Those are usually water-cooled. This kind of design inspired by the automotive industries where the radiator uses liquid cooling technology to keep the engine cool.

Water-cooling is more effective than air-cooling. Therefore, with this additional heat exchanger, the machine’s ability to throw out hot air is greatly increased compared to just air-cooling. Thus, ACs are also able to operate efficiently at very high ambient temperatures.

You are reading : Copper Coil vs Aluminium Coil in AC

Helpful Tips

1) When buying AC you must look for corrosion protection techniques, such as anti-corrosion coating, bluefin condensers, etc.

2) You should look at such facilities to keep the Aluminium Condenser or Copper Condenser clean and efficient. Some Hitachi ACs come with the ‘Evaporator Coil Clean Mode’ technology, which automatically cleans the evaporator, which also makes it easier to maintain.

You are reading : Copper Coil vs Aluminium Coil in AC

Conclusion: Copper Coil vs Aluminium Coil

Well, we might have now realized that both copper and aluminium coil has their own advantages and disadvantages. Ultimately, it all depends on your requirement to decide which is the best.

Personally, I would always suggest you go for an AC with the copper coils only as those are better cooling efficient, easy to repair, and can save your power bills. But the initial investment will be more. So the choice is yours whether to buy an aluminum coil AC or copper coil AC.
